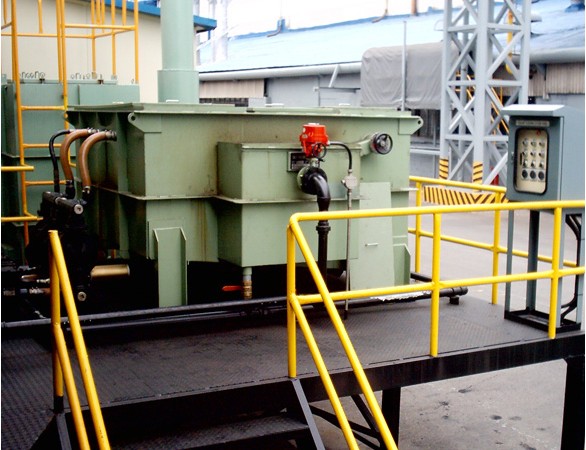

COOLANT Recycling Oil Water Separator
- 1. Composition : Pre-treating tank + Oil re-separating tank
- 2. Performance : To separate oil contents which are in oil water mixtures by 99% so that oil remants is 0.1%
- 3. Applications : Cleaning water(thermal treating water) life cycle extension, grinding oil life cycle extension, pre-treatment of waste water disposal facilities
- 4. Where to use : To remove oil in the cleaning machine, the grinding equipment, the oil skimmer, the processing plant, the thermal treatment plant, and the press plant
- 5. Features : Compact size, minimization of installing area, removal of a great amount of oil after absorbing them aggressively, investment recovery period of 3~6 months
Specification
※ You can check the contents by scrolling left/right.
| MODEL No. |
CAPACITY (m³/hr) |
DIMENSION(INCLUDING FILTERING TANK) (L X W X H) (M) |
SIZE OF PIPE (A) | SHIPPING WEIGHT(T) |
OPERATING WEIGHT(T) |
||||
|---|---|---|---|---|---|---|---|---|---|
| MAIN BODY | OIL RE-SEPARATING TANK | IN | OUT | OIL | DRAIN | ||||
| DHEPS-S1.5 | 1.5 | 0.9X0.61X0.9 | 0.5X0.2X0.5 | 20 | 32 | 32 | 20 | 0.25 | 0.50 |
| DHEPS-S3 | 3 | 0.9X0.61X1.22 | 0.5X0.25X0.6 | 25 | 40 | 32 | 25 | 0.45 | 1.00 |
| DHEPS-S5 | 5 | 0.9X0.92X1.22 | 0.6X0.30X0.6 | 25 | 50 | 40 | 25 | 0.70 | 1.50 |
| DHEPS-S10 | 10 | 1.22X1.22X1.53 | 0.7X0.35X0.7 | 40 | 65 | 50 | 32 | 1.30 | 2.60 |
