Floating Oil Skimmer
Principle

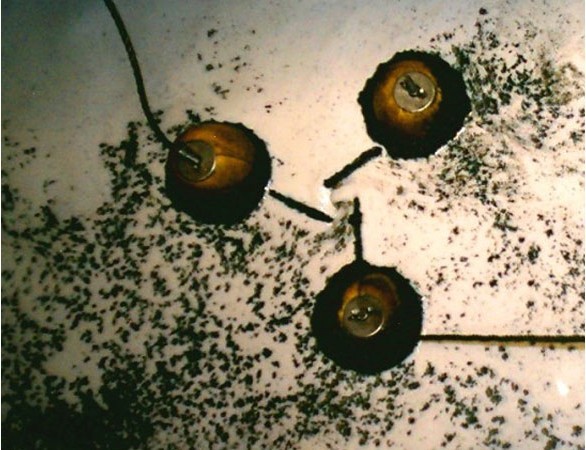

- This is the equipment that suck in the oil floating an the surface, floating around the water surface freely. The skimmer in the type of water surface flotation is used with air diaphragm pump & oily water separator. (The oil, Water & Air is sucked in all together in sucking in)
APPROPROATE USE
- The place where much oil layer occurs in the storing tank or pit
- The oil or bubble on the upper part of cutting oil or washer
- For the removal of oil when oil leaks in the river
- The place where belt oil skimmer lacks it's capacity Oil able to remove
Feature
1. It's possible to remove a large quantity of oil by using the compulsory suction with pump.
2. It's possible to utilize the hour of stay in the stored tank & PIT since the suction hole is on The surface of water and to increase the efficiency of oily water separation.
3. It's suitable to remove oil floating the wide surface of water.
4. It's possible to remove minute oil layer perfectly floating around the surface of water since it floats around the water surface and sucks in the oil compulsorily

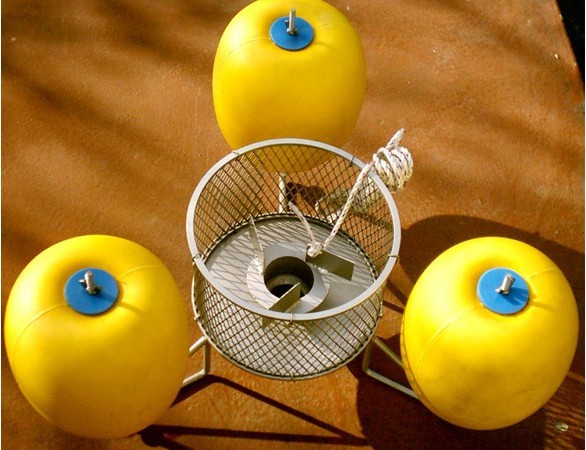

5. It's possible to suck in of intercept a large floating material thanks to the attachment of the Strainer
6. There is no problem of sludge since it floats on the surface of water
7. The water is sucked in with swirling since the suction promoting. Plate is installed in the suction hole. From the oil is sucked in the upper part, and so it has nothing to worry about the small amount of suction water and control the level of water surface. (Maximum : 50m/m)
2. It's possible to utilize the hour of stay in the stored tank & PIT since the suction hole is on The surface of water and to increase the efficiency of oily water separation.
3. It's suitable to remove oil floating the wide surface of water.
4. It's possible to remove minute oil layer perfectly floating around the surface of water since it floats around the water surface and sucks in the oil compulsorily
5. It's possible to suck in of intercept a large floating material thanks to the attachment of the Strainer
6. There is no problem of sludge since it floats on the surface of water
7. The water is sucked in with swirling since the suction promoting. Plate is installed in the suction hole. From the oil is sucked in the upper part, and so it has nothing to worry about the small amount of suction water and control the level of water surface. (Maximum : 50m/m)
APPROPRIATE OIL
Lubricant, Hydraulic oil, Rolling oil, Crude oil, Bunk-c oil, Coolant oil, Washing oil, Anti corrosive oil & Vegetable oil.
Lubricant, Hydraulic oil, Rolling oil, Crude oil, Bunk-c oil, Coolant oil, Washing oil, Anti corrosive oil & Vegetable oil.
Specification
※ You can check the contents by scrolling left/right.
| MODEL NO | CAPACITY m³/hr |
SPECIFICATION(mm) (Φ x H) |
OIL OUTLET | STRAINER (2#) |
|---|---|---|---|---|
| DHOS-WB0.5 | 3 | 300X250 | 25A | None |
| DHOS-WB01 | 8 | 600X400 | 32A | None |
| DHOS-WB02 | 25 | 720X600 | 50A | None |
| DHOS-WB03 | 40 | 870X650 | 80A | None |
| DHOS-WB05 | 60 | 1050X100 | 100A | None |

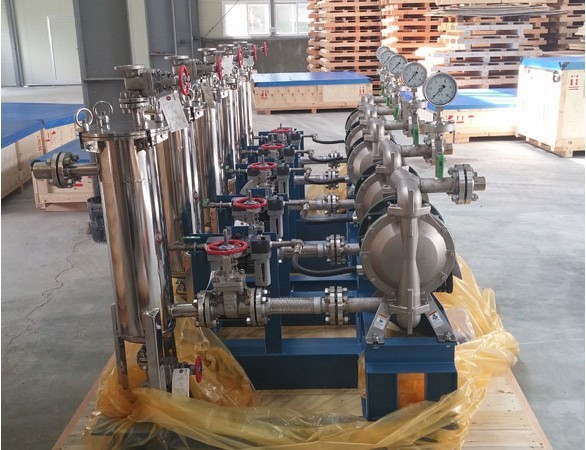

* The suction Hose, Pump & Oily water separator are the Optional S/parts
