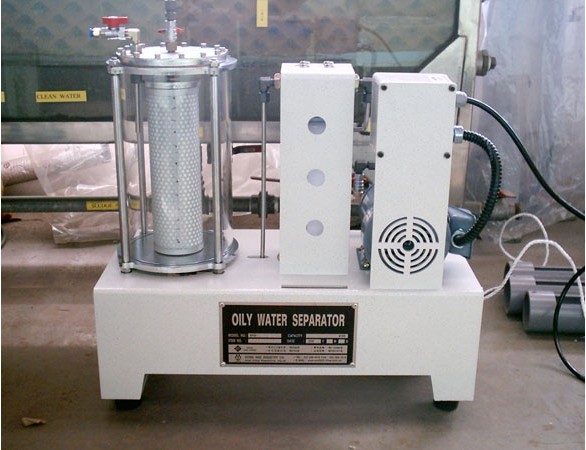

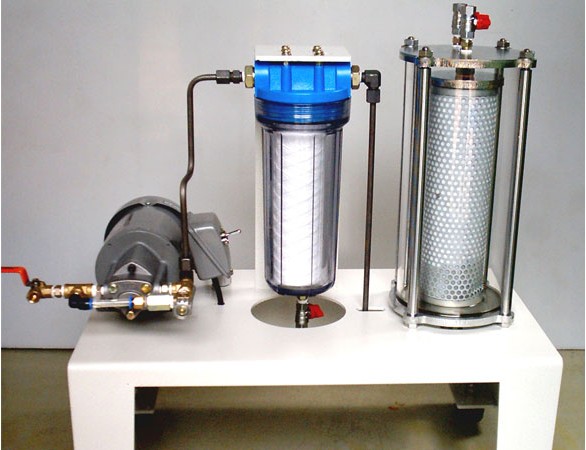

Water Separator System
- Product Principle : The water separator is a product that removes the moisture that is condensed inside the oil.
- Scope of Use : It is used to remove moisture generated in semiconductor process, vacuum pump, diesel oil, and boiler tank in clean room.

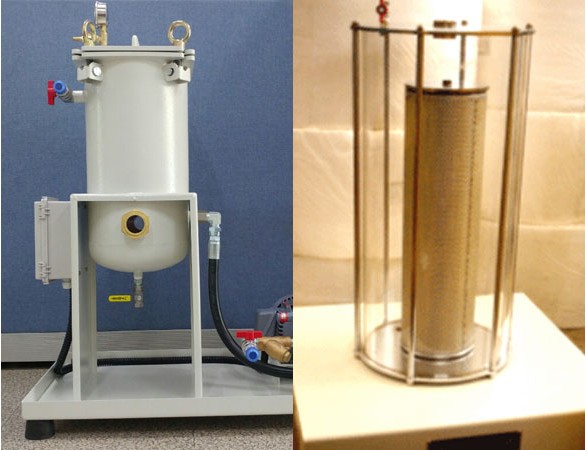

- Product Description : As moisture condensed in the oil is generated, the oil passes through, but the water is caught by the oil-water separation filter, and the fine water that has passed through the second time is separated by the secondary water separation filter.
The captured moisture falls under the housing, and this is a product designed to discharge moisture by opening the valve.
Specification
※ You can check the contents by scrolling left / right.
| Product | Water Separator | Model | EPS-F290 |
|---|---|---|---|
| Motor | 220V × 0.2Kw× 3∅ | Pump | KSP TROCHOID 10A |
| Separator Filter | 90∅×40∅×290L | Micro Filter | 10inch (Standard) |
| IN ․OUT Cal | 1/4 (8a) | Dimension | 350×650×775H(mm) |
