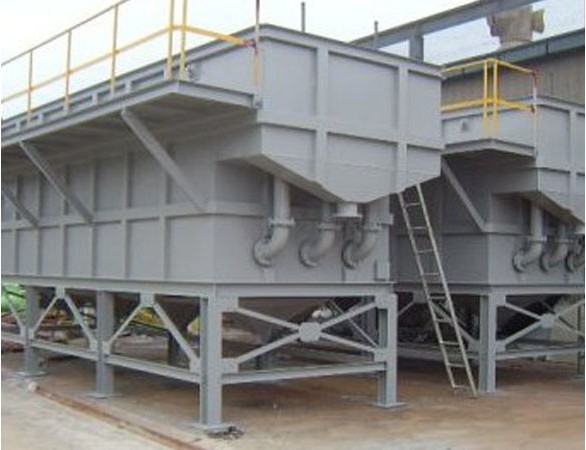

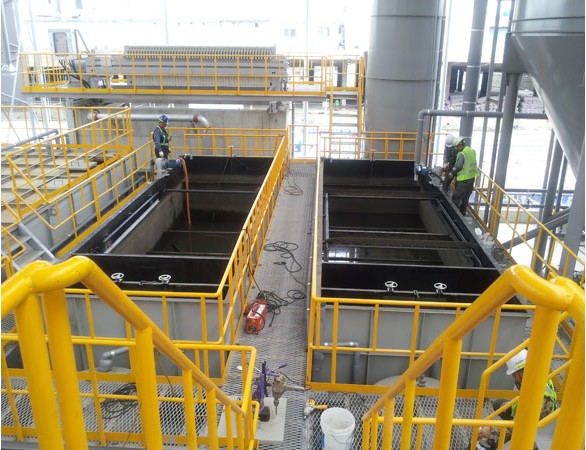

Dissolved Air Flotation Unit
- The system mixes the water first treated in the external pressure tank with the air sucked in through the ejector under pressure, and then supplies this pressurized water into the rectangular flotation unit.

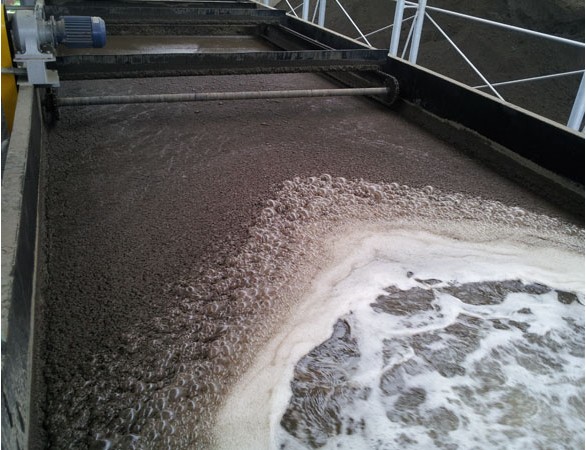

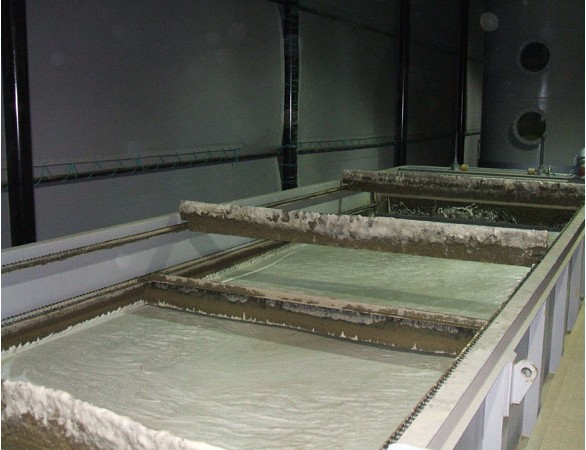

- The dissolved air flotation unit makes these air bubbles attach to the solids, decreases their density and increases their buoyancy, and finally floats the solids to the surface.
DAF(DISSOLVED AIR FLOATOR)
Characteristics of the Dissolved Air Flotation (DAF) Unit
(1) Simple system construction
(2) Affordable price
(3) Easy to operate
(4) Use of the ejector allows the air to be easily injected and pressurized, without requiring accessory equipment, such as the air compressor
(5) Large amount of air bubbles and their small size ensure high efficiency in flotation
(1) Simple system construction
(2) Affordable price
(3) Easy to operate
(4) Use of the ejector allows the air to be easily injected and pressurized, without requiring accessory equipment, such as the air compressor
(5) Large amount of air bubbles and their small size ensure high efficiency in flotation
Specification
※ You can check the contents by scrolling left/right.
| MODEL NO | CAPACITY(m³/hr) | DIMENSION(mm)(W x L x H) |
|---|---|---|
| DHDAF-5 | 5 | 1220 X 3660 X 2440 |
| DHDAF-10 | 10 | 1500 X 4700 X 2800 |
| DHDAF-20 | 20 | 2000 X 5300 X 3200 |
| DHDAF-30 | 30 | 2440 X 6100 X 3500 |
| DHDAF-50 | 50 | 2440 X 7020 X 3600 |
| DHDAF-75 | 75 | 2440 X 8940 X 3740 |
