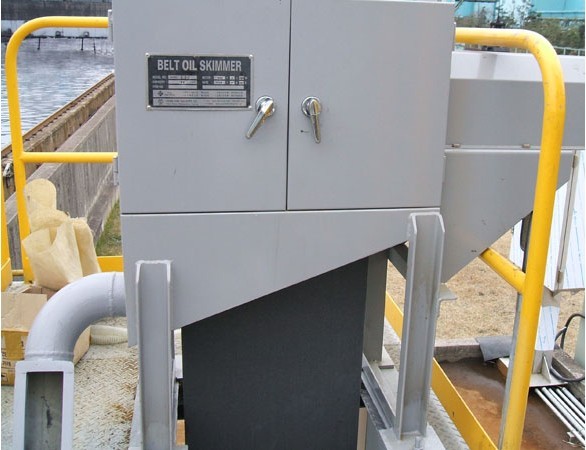

Belt Oil Skimmer
Principle
- As for belt oil skimmer, special belt is usually dirtied by the oil on the water as being dipped there, which is driven by the motor and cleaned by the scraper.
Product Features
- 1. High efficiency of removing.
- 2. Slip resistance of Belt.
- 3. No troubles of the machine.
Specification
* Where to Use
Places to occur a lot of oil
Plant of manufacturing oil, vessels, petrochemicals, cars
Various places in order to remove oil such as waste water disposal facility, car wash, fixing cars, junk yard, upper of cutting oil, and the like.
Places to occur a lot of oil
Plant of manufacturing oil, vessels, petrochemicals, cars
Various places in order to remove oil such as waste water disposal facility, car wash, fixing cars, junk yard, upper of cutting oil, and the like.
* OIL to be removed
Hydraulic oil, lubricating oil, compressing oil, Bunker C oil, oil of upper coolant tank, fuel oil, oil of metal surface treatment, oil of upper cutting oil, anti-corrosive oil, plant oil, soluble oil of upper tank, and other liquids having viscous force
Hydraulic oil, lubricating oil, compressing oil, Bunker C oil, oil of upper coolant tank, fuel oil, oil of metal surface treatment, oil of upper cutting oil, anti-corrosive oil, plant oil, soluble oil of upper tank, and other liquids having viscous force
DHOS-B Type, DH Type
※ You can check the contents by scrolling left/right.
| MODEL No. | CAPACITY |
BELT WIDTH |
DIMENSION(mm) (LXWXH) |
MOTOR CAPACITY |
OIL OUTLET |
M/COVER | C/PANEL (□XH) |
REMARK |
|---|---|---|---|---|---|---|---|---|
| DHOS-B4 | 30 | 100 | 350X350X600 | 60W | 32A | 150X230 | 150X200 | STANDARD TYPE |
| DHOS-B6 | 45 | 150 | 400X350X600 | 90W | 32A | 150X230 | 150X200 | |
| DHOS-B8 | 60 | 200 | 450X350X600 | 90W | 32A | 150X230 | 150X200 | |
| DHOS-B12 | 90 | 300 | 550X400X650 | 120W | 40A | 150X230 | 150X200 | |
| DHOS-B16 | 120 | 400 | 650X400X700 | 180W | 50A | 150X260 | 150X200 | |
| DHOS-B20 | 150 | 500 | 750X400X800 | 1/2HP | 65A | - | 150X200 | |
| DHOS-B24 | 180 | 300X2EA | 1015X450X900 | 1HP | 65A | - | 150X200 | |
| DHOS-B36 | 240 | 300X3EA | 1420X500X900 | 1HP | 80A | - | 150X200 | |
| DHOS-B72 | 480 | 300X4EA | 2635X600X1000 | 2HP | 100A | - | 150X200 | |
| DHOS-BH4 | 5-90 | 10 | 350X350X600 | 90W | 32A | 150X230 | 320X290X350 | AUTOMATIC |
| DHOS-BH6 | 7.5-135 | 150 | 400X350X600 | 120W | 32A | 150X230 | 320X290X350 | |
| DHOS-BH8 | 10-180 | 200 | 450X350X600 | 180W | 50A | 150X260 | 320X290X350 | |
| DHOS-BH12 | 15-270 | 300 | 550X400X650 | 1/2HP | 65A | - | 320X290X350 | |
| DHOS-BH16 | 20-360 | 400 | 650X400X700 | 1/2HP | 80A | - | 320X290X350 | |
| DHOS-BH20 | 25-*450 | 500 | 750X400X800 | 1HP | 100A | - | 320X290X350 | |
| DHOS-BH36 | 40-720 | 300X3EA | 1420X500X1100 | 2HP | 100A | - | 320X290X350 | |
| DHOS-BH48 | 40-990 | 300X4EA | 200X500X1300 | 3HP | 125A | - | 320X290X350 |
Standard Specification
On/Off, S/W adhesion, power conveying gear for slip resistance and wheel adhesion, re-separator of oil, oilless bearing and support adhesion, Both side of scraper adhesion, thermal overload circuit beakers (for protecting motors), NITRILE BELT 4T, 7M(Arc Length)
Materials of Main Body : STS 304
Other Parts : S45C, SS41
Coating : The color of STS original plate (other parts; plating)
On/Off, S/W adhesion, power conveying gear for slip resistance and wheel adhesion, re-separator of oil, oilless bearing and support adhesion, Both side of scraper adhesion, thermal overload circuit beakers (for protecting motors), NITRILE BELT 4T, 7M(Arc Length)
Materials of Main Body : STS 304
Other Parts : S45C, SS41
Coating : The color of STS original plate (other parts; plating)
Specification of Automation
ON/OFF S/W adhesion, power conveying gear for slip resistance and wheel adhesion, re-separator of oil, oilless bearing and support adhesion, Both side of scraper adhesion, thermal overload circuit beakers (for protecting motors), NITRILE BELT4T, 7M(Arc Length), controlling of revolution speed.
Materials of Main Body : STS 304
Other Parts : S45C, SS41
Coating : The color of STS original plate (other parts; plating)
ON/OFF S/W adhesion, power conveying gear for slip resistance and wheel adhesion, re-separator of oil, oilless bearing and support adhesion, Both side of scraper adhesion, thermal overload circuit beakers (for protecting motors), NITRILE BELT4T, 7M(Arc Length), controlling of revolution speed.
Materials of Main Body : STS 304
Other Parts : S45C, SS41
Coating : The color of STS original plate (other parts; plating)
DHOS-BS Type
| MODEL No. |
CAPACITY (L/hr) |
BELT WIDTH (mm) |
DIMENSION(mm) (LXWXH) |
MOTOR CAPACITY |
OIL OUTLET |
M/PANEL (ᆷXH) |
C/PANEL (ᆷXH) |
REMARK |
|---|---|---|---|---|---|---|---|---|
| DHOS-BS4 | 30 | 100 | 170X250X570 | 40W | 32A | None | None | HAND WORKED TYPE |
| DHOS-BS6 | 45 | 150 | 220X250X600 | 60W | 32A | - | - | |
| DHOS-BS8 | 60 | 200 | 270X250X630 | 60W | 32A | - | - |
Specification
NITRILE BELT 4T 7M (arc length)
Materials of Main Body : STS304
Other Parts : S45C, SS41 Re-separator of oil
Coating : the color of STS original plate (Other parts : plating)
NITRILE BELT 4T 7M (arc length)
Materials of Main Body : STS304
Other Parts : S45C, SS41 Re-separator of oil
Coating : the color of STS original plate (Other parts : plating)
Option
1) Motor Cover
2) Control P/L
3) Overload Breakers
1) Motor Cover
2) Control P/L
3) Overload Breakers
