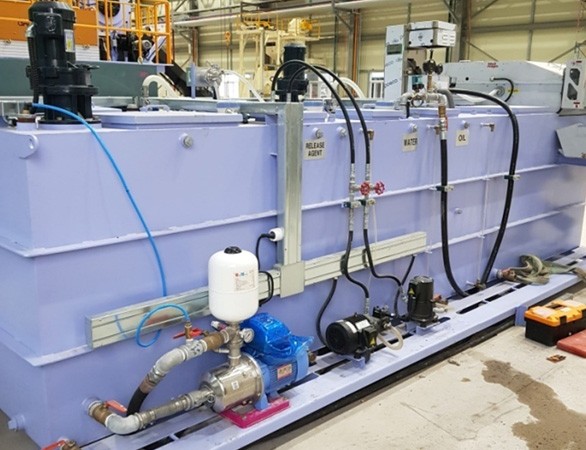

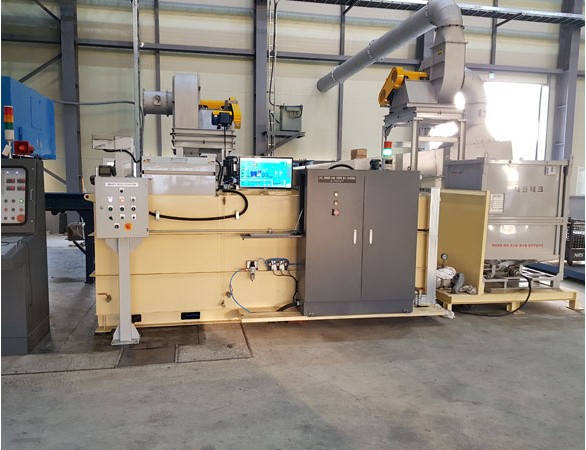

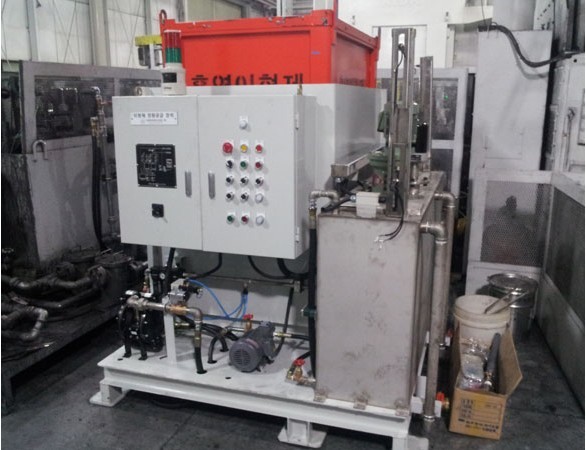

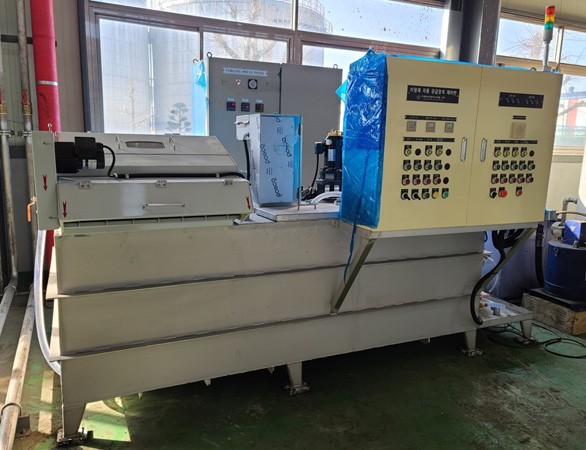

Supplying Device of Release Agent
- As being generally used in press equipment, to spray release agents inside of mold and coat them on the product. Release agent supplying device is used in die casting products or metal materials.
- It is coated to improve mechanical properties such as simple design, abrasive resistance, weather resistance, and the like. It is widely used in pressing mold shape, and angle and distance of spray nozzle.
Specification of the equipment (Basic information)
1. Tank type and its volume
1) Type : Octagonal type
2) Capacity
- Water Tank : 200L
- Raw Release Agent : 200L
- Dilution Tank : 200L
1) Type : Octagonal type
2) Capacity
- Water Tank : 200L
- Raw Release Agent : 200L
- Dilution Tank : 200L
2. Electric Panel and Control
1) Panel : Consists of Main and O/P
2) Digital display and control button for dilution rate are mounted on Main and O/P.
3) Dilution rate is 3:1, 5:1, 7:1, 9:1, 11:1,13:1 (Changeable)
4) Dilution mode is set at time programming
5) Pipe line washing mode is set on O/P (After water cleaning, it does air freshing)
6) Button for being added with release agent and water is installed in order to control remnants of dilution liquids appropriate for the next ITEM.
1) Panel : Consists of Main and O/P
2) Digital display and control button for dilution rate are mounted on Main and O/P.
3) Dilution rate is 3:1, 5:1, 7:1, 9:1, 11:1,13:1 (Changeable)
4) Dilution mode is set at time programming
5) Pipe line washing mode is set on O/P (After water cleaning, it does air freshing)
6) Button for being added with release agent and water is installed in order to control remnants of dilution liquids appropriate for the next ITEM.
3. Additional details on system
1) Hand operated valve for cleaning the side line of Tank
2) Filter on the spray line
3) Hand operated valve for cleaning line on the side of Tank
4) Filter on Spray Line
5) Manhole on the side of Tank
6) Agitator Impeller is installed close to the floor
7) Cover of upper tank is manufactured in a large size
1) Hand operated valve for cleaning the side line of Tank
2) Filter on the spray line
3) Hand operated valve for cleaning line on the side of Tank
4) Filter on Spray Line
5) Manhole on the side of Tank
6) Agitator Impeller is installed close to the floor
7) Cover of upper tank is manufactured in a large size
4. Part for supplying raw liquids (Option)
1) Heating equipment for anti-freezing in winter and to supplement ISO wall room
2) In case of over flow of raw liquids, press the buttons in order to drain them into the underground tank
3) Valve is additionally installed for extracting samples
1) Heating equipment for anti-freezing in winter and to supplement ISO wall room
2) In case of over flow of raw liquids, press the buttons in order to drain them into the underground tank
3) Valve is additionally installed for extracting samples
