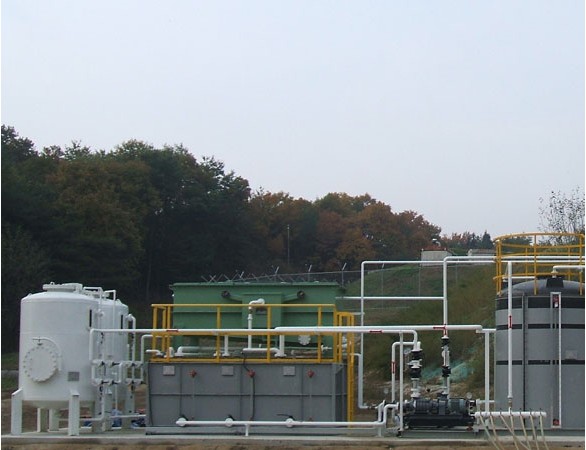

Oil Water Separator for Soil Remediation
- Bio Slurping engineering method is mainly to ban flowing and discharging of the polluting resources, and furthermore to remove flexible oil effectively in a short period which stays in the upper side of underground.
- The system uses roots blower in order to extract petrochemicals of liquid, gas, and dissolved phase.
- Oil on the float, dissolved, and gas phase under the ground point is extracted from various wells.
Knock out tank
Knock out tank is to divide liquid property with gas from mixtures of gas and liquids extracted from the blower.
Knock out tank is to divide liquid property with gas from mixtures of gas and liquids extracted from the blower.
Storage tank

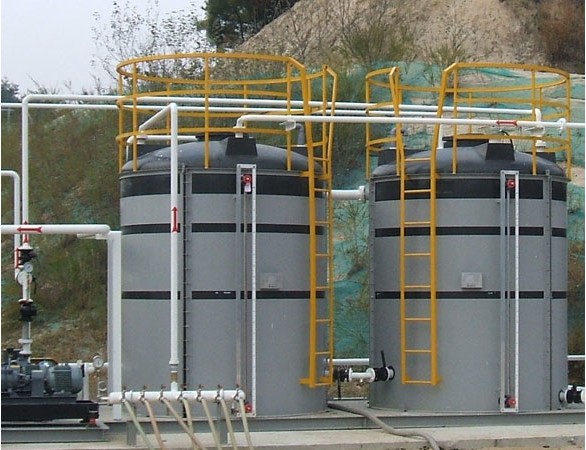

Storage tank works not only as a quantity control tank to temporarily store liquid mixtures being connected to the oil water separator but also as a pre-treatment oil water separator.
Storage tank works not only as a quantity control tank to temporarily store liquid mixtures being connected to the oil water separator but also as a pre-treatment oil water separator.
Oil/Water Separator

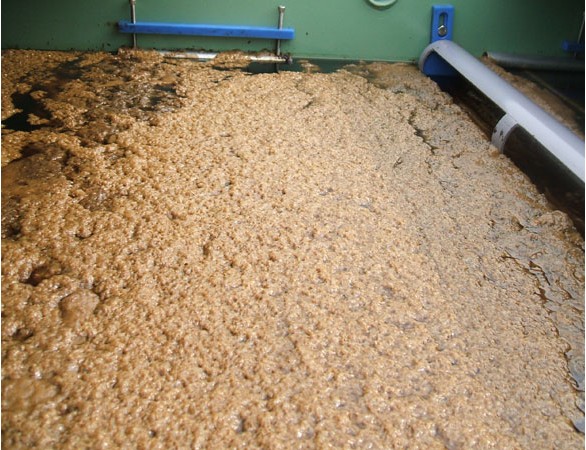

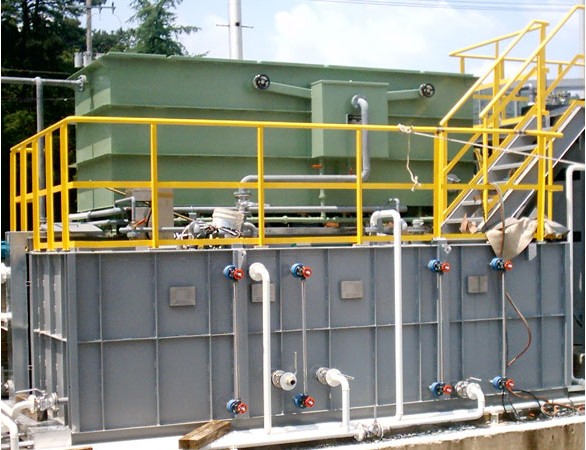

Oil water mixtures being discharged from Storage Tank are divided into water and oil components in oil water separator.
Oil water mixtures being discharged from Storage Tank are divided into water and oil components in oil water separator.
Product Collection Tank
The tank is to collect oil components from oil water separator.
The tank is to collect oil components from oil water separator.
Clean tank
After completing to divide oil and water, underground water is conveyed (gravity discharging) into the clean tank being located at the bottom of the oil water separator.
After completing to divide oil and water, underground water is conveyed (gravity discharging) into the clean tank being located at the bottom of the oil water separator.
Activated Carbon Vessel
Activated carbon in vessel is to absorb VOCs from the extracted gas.
Activated carbon in vessel is to absorb VOCs from the extracted gas.
Blueprint
